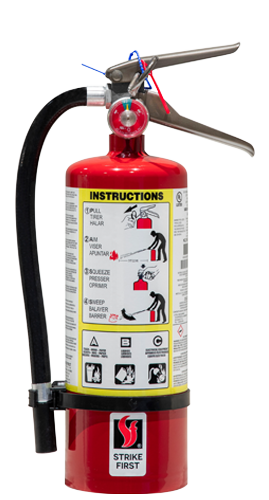

5 LB. MULTI-PURPOSE DRY CHEMICAL
PORTABLE FIRE EXTINGUISHER
Built tough and easy to service
- Modified universal valve body
- Accepts both pin or fork wall hooks
- Steel cylinder
- Super durable polyester powder paint finish with superior corrosion resistance
- Waterproof stainless steel gauge
- Handle reinforced, full grip hardcoat anodized aluminum
- Oversized pull pin with retaining strap for easier and faster activation
- Color and bar coded labels for accurate service
- Complies with NFPA 10 Standard
- Meets D.O.T. Requirements
- U.S.C.G. approved with bracket listed on label
- Temperature range: -65°F to 120°F (-54°C to 49°C)
| Specifications | ||
|---|---|---|
| Approval |   | |
| Model | SF-ABC310 | |
| Capacity | 5lb | |
| UL/ULC Rating | 3-A : 10-B : C | |
| *U.S.C.G. Approval | Type A Size II, Type B:C Size I | |
| Range | 8 - 10 ft (2.5 - 3 m) | |
| Temperature Range | -65°F to 120°F (-54°C to 49°C) | |
| Discharge Time | 14.5 sec. | |
| PSI | 195 | |
| Height | 15 1/4" (39 cm) | |
| Width | 6 3/4" (17 cm) | |
| Diameter | 4 1/4" (11 cm) | |
| Weight | 10 1/2 lbs. (4.8 kgs.) | |
The 5lb Multi-Purpose ABC Dry Chemical Portable Fire Extinguisher is designed for:
Class A
wood, paper, cloth
Class B
flammable liquids and gases
Class C
electrical equipment
Manufactured and tested to the following standards:
- ANSI/UL 299
- ANSI/UL 711
- CAN/ULC-S504
- CAN/ULC-S508
6 Year Warranty
Wall Hook
UB5, UB5 – DB
HDVB-1
