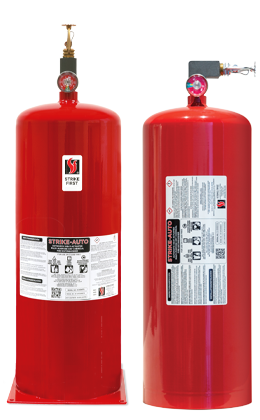

20LB DRY CHEMICAL AUTOMATIC HEAT ACTUATED MULTI-PURPOSE FIRE EXTINGUISHER
Built tough and easy to service
- Steel cylinder complete with protective skirt
- Super durable polyester powder paint finish with superior corrosion resistance
- UL Listed Heat Activated Sprinkler Head, rated at 165 degrees F (74° Celsius)
- Meets D.O.T. Requirements
- Designed to provide supplementary fire protection
- Available in two mounting styles: horizontal and vertical
- Disposable unit, does not require maintenance and inspection at 6 or 12 years
- Typical installation locations: specific fire risk areas such as flammable liquid storage rooms, construction trailers and manufacturing process areas, i.e. paint booths
| Specifications | ||
|---|---|---|
| Approval | ||
| Model | SF-AFE20ABCH | SF-AFE20ABCV | |
| Temperature Range | -65°F to 120°F (-54°C to 490°C) | |
| PSI | 195 | |
| Height | 22" (55.8 cm) | 24.5" (62.2 cm) | |
| Width | 7.2" (18.2 cm) | 7.2" (18.3 cm) | |
| Weight | 32 lbs (14.5 kg) | 32 lbs (14.5 kg) | |
The 20lb Dry Chemical Automatic Heat Actuated Multi-Purpose Fire Extinguisher is designed for:
Class A
wood, paper, cloth
Class B
flammable liquids and gases
Class C
electrical equipment
